Product Code: SDTG4800251

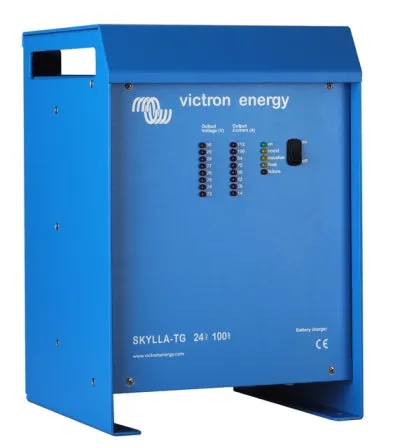

Note: Image used for demonstration purposes.

Perfect Chargers For Any Type Of Battery

Charge voltage can be precisely adjusted to suit any sealed or unsealed battery system. In particular, sealed maintenance free batteries must be charged correctly in order to ensure a long service life. Overvoltage will result in excessive gassing and venting of a sealed battery. The battery will dry out and fail.

Suitable For AC And DC Supply (AC-DC and DC-DC operation)

Except for the 3 phase input models, the chargers also accept a DC supply.

Controlled Charging

Every TG charger has a microprocessor, which accurately controls the charging in three steps. The charging process takes place in accordance with the IUoUo characteristic and charges more rapidly than other processes.

Use Of TG Chargers As A Power Supply

As a result of the perfectly stabilized output voltage, a TG charger can be used as a power supply if batteries or large buffer capacitors are not available.

To Increase Battery Life: Temperature Compensation

Every Skylla TG charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries which otherwise might be overcharged and dry out due to venting.

Battery Voltage Sense

In order to compensate for voltage loss due to cable resistance, TG chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.

Enclosure:

Material and Colour: Aluminium (Blue RAL 5012)

Battery-connection: M8 studs

230V AC connection: screw-clamp 2.5mm² (AWG 6)

Protection category: IP21

Weight: 5.5kg

Dimensions: 365 x 250 x 147mm
